MQL5 SetIndexBuffer Guide: Fix Indicators Not Displaying on Charts

1. What Is SetIndexBuffer?

When you create a custom indicator in MQL5, one of the first and most important functions to understand is SetIndexBuffer.
If you do not understand this function correctly, you will almost always run into the common problem: “The values are calculated, but nothing appears on the chart.”

In short, SetIndexBuffer is
“the function that registers an array so its calculated results can be displayed on the chart.”

In MQL5, values do not appear just because you put them into an array.
You must explicitly register the array as display data.

1.1 The Role of SetIndexBuffer

The role of SetIndexBuffer is simple, but important.

• It links indicator drawing data to an array.
• It creates a “data path” for displaying values on the chart.

The basic image is as follows.

Calculation logic → Array (buffer) → SetIndexBuffer → Chart display

In other words, if you do not use SetIndexBuffer:

• Even if you put values into the array, → nothing will be displayed on the chart

Minimum Flow (Important)

double buffer[];

int OnInit()
{
   SetIndexBuffer(0, buffer, INDICATOR_DATA);
   return(INIT_SUCCEEDED);
}

Without this one line, nothing will be displayed no matter how correct your calculation code is.

Common Mistakes

• Not writing SetIndexBuffer
• Calling it outside OnInit
• Forgetting to declare the buffer

These are errors that almost every beginner runs into at least once.

1.2 What Is an Indicator Buffer?

The word “buffer” may sound difficult, but the actual concept is simple.

👉 Buffer = an array that stores values (a double array)

Example:

double buffer[];

Each element of this array corresponds to each bar (candlestick) on the chart.

• buffer[0] → latest bar
• buffer[1] → one bar ago
• buffer[2] → two bars ago

*This may be reversed depending on the ArraySetAsSeries setting (explained later).

Important Points

• Indicators are drawn by array.
• One buffer = one line or drawing element.

Common Misunderstandings

• ❌ “If I put a value into a variable, it will be displayed.”
• ❌ “If I use Print, it will appear on the chart.”

→ An array plus SetIndexBuffer is required.

1.3 Why SetIndexBuffer Is Necessary

MQL5 is designed so that drawing and calculation are separated.

That means:

• Calculation → done in OnCalculate
• Display → only arrays registered with SetIndexBuffer

This structure enables:

• Fast drawing through internal optimization
• Management of multiple lines
• A consistent indicator structure

What Happens If You Do Not Use SetIndexBuffer?

buffer[i] = Close[i];

Even if you assign values like this:

• Nothing appears on the chart.
• No error is shown, which makes this tricky.

Practical Note (Important)

• More than 80% of “not displayed” issues are related to SetIndexBuffer.
• When debugging, check this first.

Checklist (Required)

• Are you calling SetIndexBuffer in OnInit?
• Is the buffer a double array?
• Is INDICATOR_DATA specified?
• Are you assigning values to the buffer?

2. Basic Syntax and Usage of SetIndexBuffer

With SetIndexBuffer, being able to write it correctly is more important than only understanding it.
This section makes it specific enough to use directly in your own code.

2.1 Basic Syntax

The basic syntax of SetIndexBuffer is as follows.

bool SetIndexBuffer(
   int index,
   double buffer[],
   ENUM_INDEXBUFFER_TYPE type
);

Meaning of Each Argument (Important)

• index → Buffer number, starting from 0
• buffer[] → Array used for display or calculation
• type → Buffer purpose: display or internal calculation

Most Important Points

• index starts from 0.
• buffer must be a double array only.
• type determines whether it can be displayed.

2.2 Minimum Working Usage

First, understand the smallest structure that is guaranteed to work.

Steps for Beginners

1. Declare the array.
2. Set SetIndexBuffer in OnInit.
3. Assign values in OnCalculate.

Code Example (Minimum Structure)

#property indicator_separate_window
#property indicator_buffers 1
#property indicator_plots   1

double buffer[];

int OnInit()
{
   SetIndexBuffer(0, buffer, INDICATOR_DATA);
   return(INIT_SUCCEEDED);
}

int OnCalculate(const int rates_total,
                const int prev_calculated,
                const int begin,
                const double &price[])
{
   for(int i = 0; i < rates_total; i++)
   {
      buffer[i] = price[i];
   }

   return(rates_total);
}

What This Code Does

• Displays price[] as-is.
• Assigns values to buffer, then draws them through SetIndexBuffer.

How to Confirm It Works

• A line appears in the subwindow.
• The values update.

2.3 How to Think About index (Buffer Number)

index means “which line number this is.”

Example: Multiple Lines

SetIndexBuffer(0, buffer1, INDICATOR_DATA);
SetIndexBuffer(1, buffer2, INDICATOR_DATA);

• 0 → first line
• 1 → second line

Important Notes

• If index and PlotIndex do not match, the line may not display.
• The count must match indicator_buffers.

Common Mistakes

• Starting index from 1
• Specifying an index larger than the number of buffers

2.4 Basics of type (Buffer Type)

type is the point that confuses beginners most often.

Two Commonly Used Types

INDICATOR_DATA
INDICATOR_CALCULATIONS

The Difference (Important)

• INDICATOR_DATA → Displayed on the chart
• INDICATOR_CALCULATIONS → Used for internal calculation and not displayed

Beginners Can Usually Use This

SetIndexBuffer(0, buffer, INDICATOR_DATA);

Common Mistakes

• Using CALCULATIONS and wondering why nothing appears
• Omitting type, which is not allowed in MQL5

2.5 Common Errors and Causes

This is the core of the search intent.

Case 1: Nothing Is Displayed

Cause:

• INDICATOR_DATA is not specified.
• SetIndexBuffer is not executed.

Case 2: The Line Disappears Partway Through

Cause:

• No value is assigned to the buffer.
• The buffer is used before initialization.

Case 3: Values Are Shifted

Cause:

• ArraySetAsSeries is not set.
• The index direction is misunderstood.

2.6 Important Practical Checkpoints

In real development, always check the following.

Checklist

• Is SetIndexBuffer called in OnInit?
• Is the buffer declared globally?
• Does it match the number of indicator_buffers?
• Is type set to INDICATOR_DATA?

Debugging Tips

• Use Print to check buffer values.
• Start by confirming behavior with a simple copy.

3. Difference Between Buffer Types (INDICATOR_DATA / CALCULATIONS)

Among SetIndexBuffer settings, the most misunderstood point and one of the most common causes of display trouble is type, or the buffer type.
If you keep this vague, you will stay stuck in the state where “the calculation works, but nothing is displayed.”

3.1 What Is INDICATOR_DATA? (Display Buffer)

INDICATOR_DATA is a buffer displayed on the chart.

SetIndexBuffer(0, buffer, INDICATOR_DATA);

Only arrays with this setting are drawn as lines or histograms.

Characteristics

• Drawn on the chart
• Works with PlotIndexSet functions
• Included in indicator_plots

Typical Usage Example

double mainBuffer[];

int OnInit()
{
   SetIndexBuffer(0, mainBuffer, INDICATOR_DATA);
   return(INIT_SUCCEEDED);
}

Practical Points

• Data you want to show must be INDICATOR_DATA.
• For multiple lines, specify multiple display buffers.

Common Mistakes

• Not setting INDICATOR_DATA
• Having index and plot settings that do not match

3.2 What Is INDICATOR_CALCULATIONS? (Internal Calculation Buffer)

INDICATOR_CALCULATIONS is a calculation buffer that is not displayed.

SetIndexBuffer(1, calcBuffer, INDICATOR_CALCULATIONS);

Characteristics

• Not displayed on the chart
• Used for intermediate calculations
• Helps with performance optimization

Usage Example (Intermediate Moving Average Calculation)

double tempBuffer[];
double outputBuffer[];

int OnInit()
{
   SetIndexBuffer(0, outputBuffer, INDICATOR_DATA);
   SetIndexBuffer(1, tempBuffer, INDICATOR_CALCULATIONS);
   return(INIT_SUCCEEDED);
}

Typical Uses

• Intermediate EMA calculations
• Internal ATR values
• Filtering data

Common Misunderstanding

• ❌ “CALCULATIONS is also displayed.” → It is not displayed.

3.3 How to Use the Two Types Correctly (Important)

This is where the design branches.

Decision Criteria

Basic Practical Design

Display: final result → INDICATOR_DATA
Calculation: intermediate data → CALCULATIONS

Example Structure

Price → tempBuffer (calculation) → outputBuffer (display)

3.4 Typical Beginner Traps

This section has very strong search demand.

Pattern 1: Nothing Is Displayed

SetIndexBuffer(0, buffer, INDICATOR_CALCULATIONS);

→ Cause: CALCULATIONS is being used.

Pattern 2: The Buffer Exists, but It Cannot Be Seen

Cause:

• Plot settings are missing.
• indicator_plots is not defined.

Pattern 3: Values Exist, but No Line Appears

Cause:

• EMPTY_VALUE is mixed in.
• Drawing settings are wrong.

3.5 Design-Level Understanding for Intermediate Users

MQL5 is designed with the following idea.

Separated Design

• Calculation (CALCULATIONS)
• Display (DATA)

This enables:

• Fast processing
• Reusability
• Stable drawing

Practical Benefits

• You can separate calculation logic.
• Bugs are easier to isolate.
• Performance can be improved.

3.6 Checklist (Most Important)

When nothing is displayed, check here.

Required Checks

• Is the buffer you want to display set to INDICATOR_DATA?
• Do index and plot match?
• Does the buffer contain values?

Debugging Steps

1. Set all buffers to INDICATOR_DATA.
2. Assign a simple value such as Close.
3. Gradually restore the original logic.

3.7 Practical Advice Based on Expected Results

• Do not use CALCULATIONS in the initial stage.
• First, prioritize making the indicator display.
• Optimize after that.

Recommended Steps

1. Build only with INDICATOR_DATA.
2. Confirm that it works.
3. Separate calculation buffers into CALCULATIONS.

4. Implementing an Indicator with Multiple Buffers

SetIndexBuffer can be used by itself, but in real development, combining multiple buffers is the normal pattern.
Here, we make the implementation steps concrete using an indicator with multiple lines, such as a main line plus a signal line.

4.1 Basic Design for Multiple Buffers

When using multiple buffers, the following design is typical.

buffer0 → main display (INDICATOR_DATA)
buffer1 → secondary display (INDICATOR_DATA)
buffer2 → internal calculation (INDICATOR_CALCULATIONS)

Required Settings

#property indicator_buffers 3
#property indicator_plots   2

• indicator_buffers → number of arrays used
• indicator_plots → number of displayed lines

Important Points

• buffers ≥ plots is required.
• Set plots to the number of items you display.

4.2 Implementation Steps (Template)

In practice, build it in the following order.

Steps

1. Declare the buffers.
2. Define indicator_buffers and plots.
3. Link them with SetIndexBuffer.
4. Set drawing options with PlotIndexSet functions.
5. Assign values in OnCalculate.

4.3 Practical Code Example (Two Lines + Internal Calculation)

The following is a structure for a simple moving average plus signal line.

#property indicator_separate_window
#property indicator_buffers 3
#property indicator_plots   2

double mainBuffer[];
double signalBuffer[];
double tempBuffer[];

int OnInit()
{
   // Buffer registration
   SetIndexBuffer(0, mainBuffer, INDICATOR_DATA);
   SetIndexBuffer(1, signalBuffer, INDICATOR_DATA);
   SetIndexBuffer(2, tempBuffer, INDICATOR_CALCULATIONS);

   // Drawing settings
   PlotIndexSetInteger(0, PLOT_DRAW_TYPE, DRAW_LINE);
   PlotIndexSetInteger(1, PLOT_DRAW_TYPE, DRAW_LINE);

   return(INIT_SUCCEEDED);
}

int OnCalculate(const int rates_total,
                const int prev_calculated,
                const int begin,
                const double &price[])
{
   for(int i = 0; i < rates_total; i++)
   {
      tempBuffer[i]   = price[i];             // Intermediate data
      mainBuffer[i]   = tempBuffer[i];        // Main
      signalBuffer[i] = mainBuffer[i] * 0.9;  // Signal
   }

   return(rates_total);
}

Structure of This Code

• tempBuffer → internal calculation
• mainBuffer → display 1
• signalBuffer → display 2

Display Result

• Two lines are drawn.
• The signal line appears slightly below the main line.

4.4 Common Mistakes (Important)

Multiple buffers create more chances for errors.

Case 1: Only One Line Appears

Cause:

• indicator_plots is too small.
• PlotIndexSet is not configured.

Case 2: Nothing Is Displayed

Cause:

• index and buffer are linked incorrectly.
• INDICATOR_DATA is missing.

Case 3: Array Error (out of range)

Cause:

• The buffer size is not initialized.
• rates_total is not considered.

4.5 Practical Design Pattern

Complex indicators often use the following structure.

Typical Structure

Price
 ↓
Preprocessing (CALCULATIONS)
 ↓
Main logic (CALCULATIONS)
 ↓
Display output (DATA)

Benefits

• Logic separation
• Easier debugging
• Better reusability

4.6 How to Debug (Important)

If a problem appears with multiple buffers:

Steps

1. Change all buffers to INDICATOR_DATA.
2. Assign simple values such as Close.
3. Restore each buffer one by one.

High-Value Isolation

• Display problem → SetIndexBuffer or Plot settings
• Calculation problem → OnCalculate

4.7 Summary of Important Notes

• Do the number of buffers and properties match?
• Does index start from 0 and continue in order?
• Are display buffers and calculation buffers separated correctly?

Practical Advice

• Start with one buffer.
• Expand after it works.

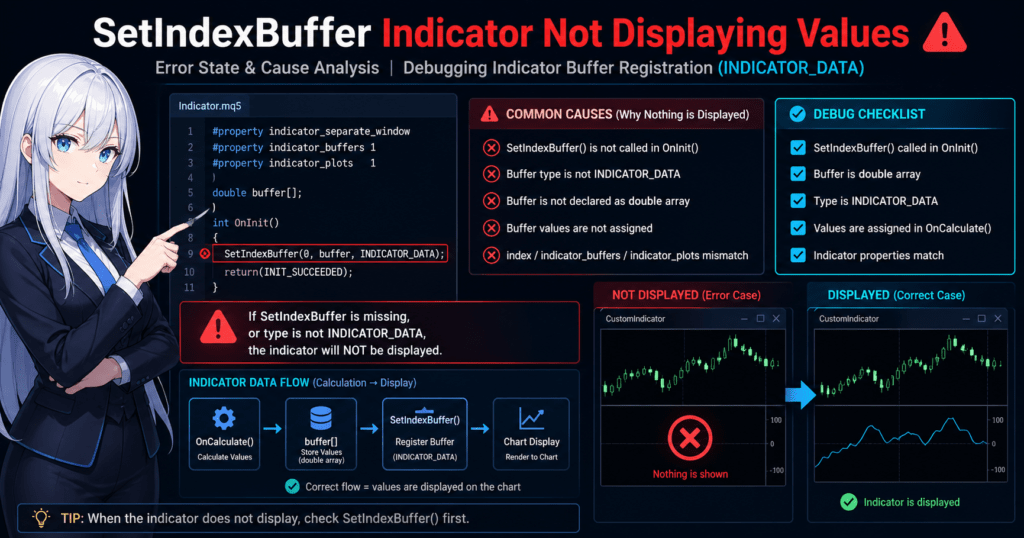

5. Why Nothing Is Displayed and How to Fix It

The most common problem with indicators that use SetIndexBuffer is “the code compiles, but nothing is displayed.” This type of bug is usually not a syntax error. It is caused by a missing setting, missing link, or missing assignment.
This section organizes the most frequent practical causes in the order you should check them.

5.1 Minimum Checks to Do First

When nothing is displayed, do not suspect complex logic first. Check the following items from the top.

• Are you calling SetIndexBuffer() in OnInit()?
• Is the array you want to display set to INDICATOR_DATA?
• Is #property indicator_buffers large enough?
• Does #property indicator_plots match the number of displayed lines?
• Are you actually assigning values to the buffer inside OnCalculate()?

If any one of these five items is missing, the result can be hidden with no error.

5.2 Cause 1: SetIndexBuffer Is Not Set

This is the most basic cause.
Even if you declare an array and assign values to it, MQL5 will not treat it as a drawing target unless you register it with SetIndexBuffer.

Bad Example

double buffer[];

int OnInit()
{
   return(INIT_SUCCEEDED);
}

In this state, values assigned to buffer[] will not be displayed.

Fixed Example

double buffer[];

int OnInit()
{
   SetIndexBuffer(0, buffer, INDICATOR_DATA);
   return(INIT_SUCCEEDED);
}

Important Notes

• You do not need to call SetIndexBuffer() every time inside OnCalculate().
• The basic rule is to set it once in OnInit.

5.3 Cause 2: INDICATOR_CALCULATIONS Is Being Used

This happens when you try to display an internal calculation buffer.

Bad Example

SetIndexBuffer(0, buffer, INDICATOR_CALCULATIONS);

With this setting, buffer[] is treated as a calculation buffer, so it is not drawn on the chart.

Fixed Example

SetIndexBuffer(0, buffer, INDICATOR_DATA);

Decision Rule

• Value you want to show → INDICATOR_DATA
• Value used only internally → INDICATOR_CALCULATIONS

Common Mistakes

• Changing everything to CALCULATIONS while trying to clean up the code
• Assuming “it should appear because values are in the array”

5.4 Cause 3: No Value Is Assigned in OnCalculate

Even if SetIndexBuffer is configured, nothing will appear if the buffer is empty.
In particular, if loop conditions or prev_calculated handling are wrong, the buffer may effectively never receive a value.

Bad Example

int OnCalculate(const int rates_total,
                const int prev_calculated,
                const int begin,
                const double &price[])
{
   return(rates_total);
}

The buffer may be registered, but nothing is assigned, so nothing is displayed.

Fixed Example

int OnCalculate(const int rates_total,
                const int prev_calculated,
                const int begin,
                const double &price[])
{
   for(int i = 0; i < rates_total; i++)
   {
      buffer[i] = price[i];
   }

   return(rates_total);
}

Easy Places to Get Stuck

• Using the wrong loop start position
• Skipping assignment because of a conditional branch
• Assigning only some bars, leaving no values in the visible range

5.5 Cause 4: property Settings Are Missing

If #property settings for the number of buffers or plots are missing, the result may not appear as expected even when the buffers are linked correctly.

Typical Example

#property indicator_buffers 1
#property indicator_plots   1

If you use two display buffers in this state, the structure does not match.

How to Fix the Design

• Total number of buffers used → indicator_buffers
• Number of lines actually displayed → indicator_plots

Example

#property indicator_buffers 3
#property indicator_plots   2

In this case, you can use a structure such as:

• two display buffers
• one calculation buffer

Important Notes

• buffers and plots do not mean the same thing.
• Calculation buffers that are not displayed are still included in indicator_buffers.

5.6 Cause 5: Drawing Settings Are Missing

Buffer registration alone may not be enough. Sometimes the setting for how to draw the data is missing.
Especially with multiple plots, if the drawing type is unclear, the display may not match your intent.

Example

PlotIndexSetInteger(0, PLOT_DRAW_TYPE, DRAW_LINE);

This draws plot 0 as a line.

Points to Check

• DRAW_LINE
• DRAW_HISTOGRAM
• DRAW_ARROW

Check whether the display format matches your goal.

Common Mistakes

• The buffer exists, but the drawing format is wrong.
• You intended an arrow display, but the setting is still a line.
• The drawing type itself is wrong before color or width settings matter.

5.7 Cause 6: EMPTY_VALUE or Uninitialized Values Are Mixed In

In MQL5, EMPTY_VALUE is sometimes assigned to elements that should not be drawn.
This is a correct use case, but if every bar receives EMPTY_VALUE, nothing will be visible.

Example

for(int i = 0; i < rates_total; i++)
{
   buffer[i] = EMPTY_VALUE;
}

This code alone hides everything.

Basic Rule

• Use EMPTY_VALUE only for bars you do not want to display.
• Assign real numeric values to bars you want to display.

Important Notes

• A condition may be too strict and hide every bar.
• During debugging, assigning a simple value such as Close[i] makes isolation easier.

5.8 Cause 7: Misunderstanding the Index Direction

With time-series arrays, it is easy to misunderstand whether the newest bar is index 0 or the oldest bar is index 0.
This mismatch can make values appear in the wrong place or look unnatural, even when values are assigned.

Common Symptoms

• The line looks reversed.
• The latest bar has no value.
• Only some values appear in strange positions.

Countermeasures

• Check whether ArraySetAsSeries() is used.
• Make the direction of price[] and your own buffers consistent.
• At first, avoid complex optimization and confirm behavior with a simple loop.

Practical View

This often appears not as “nothing is displayed,” but as “the value is not displayed in the correct place.”

5.9 Fastest Debugging Procedure

For display problems, narrow down the cause in this order.

Steps

• 1. Check whether SetIndexBuffer() exists.
  2. Check whether it is INDICATOR_DATA.
  3. Check indicator_buffers / indicator_plots.
  4. Inside OnCalculate(), change the logic to a simple assignment such as buffer[i] = price[i];.
  5. If it appears after that, the cause is in the original calculation logic.

Useful Practical Test

for(int i = 0; i < rates_total; i++)
{
   buffer[i] = price[i];
}

If this displays correctly, it is easier to decide that:

• SetIndexBuffer-related settings are working.
• The problem is in the calculation formula or conditional branch.

5.10 Summary of Common Mistakes

• SetIndexBuffer is not written.
• INDICATOR_CALCULATIONS is being used.
• No value is assigned in OnCalculate().
• indicator_buffers does not match the actual number.
• Most values are EMPTY_VALUE.
• The array direction is misunderstood.

Even if the display problem looks complicated, it usually comes down to three areas: registration, settings, and assignment.
Checking these three in order is the fastest path to a fix.

6. Relationship with ArraySetAsSeries and Important Notes

Even when SetIndexBuffer is used correctly, issues such as “values exist, but the display is shifted” or “no value appears on the latest bar” are often caused by how ArraySetAsSeries is handled.
This chapter explains how to correctly understand array direction, or index direction, and how to avoid bugs.

6.1 What Is ArraySetAsSeries?

ArraySetAsSeries is a function that changes the index direction of an array, or how time series values are ordered.

ArraySetAsSeries(array, true);

Behavior Difference

Conclusion (Important)

• true → MT4-style, where the latest bar is 0
• false → normal array, ordered from oldest to newest

6.2 Why This Matters

In MQL5, if the direction of data arrays is not consistent:

• The latest bar may not receive a value.
• The line may look reversed.
• Only part of the line may display.

Typical Mismatch

buffer[0] = intended latest data

But in reality:

• buffer[0] = oldest data when ArraySetAsSeries=false

→ The result is the opposite of what you intended.

6.3 Basic Practical Rule

To avoid confusion, standardize on one of the following patterns.

Pattern A (Recommended: MT4-Compatible Thinking)

ArraySetAsSeries(buffer, true);

• buffer[0] = latest bar
• Intuitive and easy to understand

Pattern B (Standard Array)

ArraySetAsSeries(buffer, false);

• buffer[0] = oldest
• C-language-style array structure

Conclusion

👉 For beginners, using true consistently is safer.

6.4 Implementation Example (Correct Setting)

double buffer[];

int OnInit()
{
   SetIndexBuffer(0, buffer, INDICATOR_DATA);
   ArraySetAsSeries(buffer, true);

   return(INIT_SUCCEEDED);
}

Additional Notes

• Standard arrays such as price[] are usually passed as true time series arrays.
• Your custom buffers should use the same direction.

6.5 Common Mistakes (Important)

These are very common in real development.

Case 1: The Display Is Reversed

Cause:

• buffer is false
• price is true

→ The indexes do not align.

Case 2: The Latest Bar Does Not Update

Cause:

• The loop direction and array direction do not match.

Case 3: Only Part of the Line Is Displayed

Cause:

• The loop range is wrong for the array direction.

6.6 Loop Design Notes

The loop structure changes depending on array direction.

true (Recommended)

for(int i = 0; i < rates_total; i++)
{
   buffer[i] = price[i];
}

When false

for(int i = 0; i < rates_total; i++)
{
   buffer[i] = price[i];
}

*Be careful: the same code has a different meaning.

Practical Advice

• Do not optimize loops in the initial stage.
• Prioritize making the display correct first.

6.7 Relationship with prev_calculated

prev_calculated, often used for optimization, is also closely related to array direction.

Common Mistake

for(int i = prev_calculated; i < rates_total; i++)

Why this may not work correctly:

• The array direction is misunderstood.

Safe Method in the Initial Stage

for(int i = 0; i < rates_total; i++)

→ Start by checking with this.

6.8 Fastest Debugging Route

You can check array direction immediately with the following.

Test Code

buffer[0] = 100;
buffer[1] = 50;
buffer[2] = 0;

How to Judge the Result

• 100 appears at the right edge → correct
• 100 appears at the left edge → reversed

6.9 Practical Standard Rule (Important)

To reduce trouble, use the following standard.

Recommended Rule

• Use ArraySetAsSeries(true) for all buffers.
• Match the direction of the price array.
• Loop from 0 to rates_total.

Bad Patterns

• Different buffers use different directions.
• true and false are mixed unintentionally.
• The code depends on the default setting without making it explicit.

6.10 Summary from a Practical View

• SetIndexBuffer alone is not enough.
• If the array direction is wrong, the display will not be correct.
• For beginners, standardizing on true is the safest choice.

7. Drawing Customization with PlotIndexSet Functions

SetIndexBuffer completes the “registration of data to display,” but you still need separate settings for how to draw it, such as line type, color, width, and style.
The functions responsible for this are the PlotIndexSet functions. Understanding them lets you build indicators that are usable in real projects.

7.1 Role of PlotIndexSet Functions

The PlotIndexSet functions are a group of functions that control the visual appearance, or rendering settings, of an indicator.

PlotIndexSetInteger(index, property, value);
PlotIndexSetDouble(index, property, value);
PlotIndexSetString(index, property, value);

Important Relationship

SetIndexBuffer → register data
PlotIndexSet   → set appearance

Conclusion

👉 Both are needed before the indicator is displayed correctly.

7.2 Minimum Required Setting

At first, this is enough.

PlotIndexSetInteger(0, PLOT_DRAW_TYPE, DRAW_LINE);

Meaning

• 0 → buffer number
• DRAW_LINE → draw as a line

If You Do Not Set It

• The default drawing mode is used.
• Depending on the environment, the display may not match your intent.

7.3 Main Drawing Types (Important)

Choose the drawing type based on the purpose.

Common Types

DRAW_LINE
DRAW_HISTOGRAM
DRAW_ARROW
DRAW_NONE

Use by Purpose

• LINE → moving averages and oscillators
• HISTOGRAM → MACD and volume
• ARROW → signal display

Example

PlotIndexSetInteger(0, PLOT_DRAW_TYPE, DRAW_HISTOGRAM);

7.4 Setting Color, Width, and Style

This is important for improving readability.

Color Setting

PlotIndexSetInteger(0, PLOT_LINE_COLOR, clrBlue);

Width

PlotIndexSetInteger(0, PLOT_LINE_WIDTH, 2);

Line Style

PlotIndexSetInteger(0, PLOT_LINE_STYLE, STYLE_DASH);

Practical Example

PlotIndexSetInteger(0, PLOT_DRAW_TYPE, DRAW_LINE);
PlotIndexSetInteger(0, PLOT_LINE_COLOR, clrRed);
PlotIndexSetInteger(0, PLOT_LINE_WIDTH, 2);

7.5 Settings for Multiple Plots

When handling multiple lines, each line needs its own settings.

Example

PlotIndexSetInteger(0, PLOT_LINE_COLOR, clrBlue);
PlotIndexSetInteger(1, PLOT_LINE_COLOR, clrGreen);

Important Notes

• Settings are independent for each index.
• Missing settings result in the default display.

7.6 Label Setting (Important)

This sets the legend, or the displayed indicator name.

PlotIndexSetString(0, PLOT_LABEL, "Main Line");

Effect

• Shown in the Data Window
• Makes multiple lines easier to identify

7.7 Common Mistakes (Important)

Drawing settings are easy to overlook.

Case 1: Not Displayed Because Drawing Is Disabled

Cause:

PlotIndexSetInteger(0, PLOT_DRAW_TYPE, DRAW_NONE);

Case 2: The Color Cannot Be Seen

Cause:

• It is the same as the background color.
• Transparency settings are applied.

Case 3: The Line Is Too Thin

Cause:

PLOT_LINE_WIDTH = 1

→ Visibility is low.

7.8 Practical Template (Recommended)

The following is a stable structure often used in real projects.

int OnInit()
{
   SetIndexBuffer(0, buffer, INDICATOR_DATA);

   PlotIndexSetInteger(0, PLOT_DRAW_TYPE, DRAW_LINE);
   PlotIndexSetInteger(0, PLOT_LINE_COLOR, clrBlue);
   PlotIndexSetInteger(0, PLOT_LINE_WIDTH, 2);
   PlotIndexSetString(0, PLOT_LABEL, "Indicator");

   return(INIT_SUCCEEDED);
}

7.9 Important Debugging Points

If nothing is displayed:

Isolation

• SetIndexBuffer → is it OK?
• PlotIndexSet → is DRAW_TYPE correct?

How to Check

Temporarily change it to:

PlotIndexSetInteger(0, PLOT_DRAW_TYPE, DRAW_LINE);
PlotIndexSetInteger(0, PLOT_LINE_COLOR, clrWhite);
PlotIndexSetInteger(0, PLOT_LINE_WIDTH, 3);

→ If it appears, the issue is in the drawing settings.

7.10 Practical Advice

• At first, LINE is enough.
• Adjust the appearance later.
• Prioritize making it display.

8. Complete Practical Template You Can Copy and Paste

Based on everything covered so far, this section provides a minimal and practical template that correctly combines SetIndexBuffer, ArraySetAsSeries, and PlotIndexSet.
Start with this structure to create a state where the indicator reliably displays, then add your own logic.

8.1 Minimum Stable Template (One Buffer)

#property indicator_separate_window
#property indicator_buffers 1
#property indicator_plots   1

double buffer[];

int OnInit()
{
   // Buffer registration (display)
   SetIndexBuffer(0, buffer, INDICATOR_DATA);

   // Standardize array direction (latest bar is 0)
   ArraySetAsSeries(buffer, true);

   // Drawing settings
   PlotIndexSetInteger(0, PLOT_DRAW_TYPE, DRAW_LINE);
   PlotIndexSetInteger(0, PLOT_LINE_COLOR, clrBlue);
   PlotIndexSetInteger(0, PLOT_LINE_WIDTH, 2);
   PlotIndexSetString(0, PLOT_LABEL, "Sample");

   return(INIT_SUCCEEDED);
}

int OnCalculate(const int rates_total,
                const int prev_calculated,
                const int begin,
                const double &price[])
{
   // Prioritize safety: update all bars
   for(int i = 0; i < rates_total; i++)
   {
      buffer[i] = price[i];
   }

   return(rates_total);
}

Features of This Template

• Reliable display structure
• Avoids array direction mismatch
• Includes drawing settings
• Easy to debug

How to Confirm It Works

• A line appears in the subwindow.
• It follows the price.

8.2 Two Buffers (Main + Signal)

#property indicator_separate_window
#property indicator_buffers 2
#property indicator_plots   2

double mainBuffer[];
double signalBuffer[];

int OnInit()
{
   SetIndexBuffer(0, mainBuffer, INDICATOR_DATA);
   SetIndexBuffer(1, signalBuffer, INDICATOR_DATA);

   ArraySetAsSeries(mainBuffer, true);
   ArraySetAsSeries(signalBuffer, true);

   // Main line
   PlotIndexSetInteger(0, PLOT_DRAW_TYPE, DRAW_LINE);
   PlotIndexSetInteger(0, PLOT_LINE_COLOR, clrBlue);

   // Signal line
   PlotIndexSetInteger(1, PLOT_DRAW_TYPE, DRAW_LINE);
   PlotIndexSetInteger(1, PLOT_LINE_COLOR, clrRed);

   return(INIT_SUCCEEDED);
}

int OnCalculate(const int rates_total,
                const int prev_calculated,
                const int begin,
                const double &price[])
{
   for(int i = 0; i < rates_total; i++)
   {
      mainBuffer[i]   = price[i];
      signalBuffer[i] = price[i] * 0.9;
   }

   return(rates_total);
}

Points

• Use SetIndexBuffer for each buffer.
• Drawing settings are also needed for each line.
• Make the structure match indicator_plots.

8.3 Practical Structure with Internal Calculation Buffers

#property indicator_separate_window
#property indicator_buffers 3
#property indicator_plots   1

double outputBuffer[];
double calcBuffer1[];
double calcBuffer2[];

int OnInit()
{
   SetIndexBuffer(0, outputBuffer, INDICATOR_DATA);
   SetIndexBuffer(1, calcBuffer1, INDICATOR_CALCULATIONS);
   SetIndexBuffer(2, calcBuffer2, INDICATOR_CALCULATIONS);

   ArraySetAsSeries(outputBuffer, true);
   ArraySetAsSeries(calcBuffer1, true);
   ArraySetAsSeries(calcBuffer2, true);

   PlotIndexSetInteger(0, PLOT_DRAW_TYPE, DRAW_LINE);

   return(INIT_SUCCEEDED);
}

int OnCalculate(const int rates_total,
                const int prev_calculated,
                const int begin,
                const double &price[])
{
   for(int i = 0; i < rates_total; i++)
   {
      calcBuffer1[i] = price[i];
      calcBuffer2[i] = calcBuffer1[i] * 2;
      outputBuffer[i] = calcBuffer2[i];
   }

   return(rates_total);
}

Practical Meaning

• calcBuffer → intermediate processing
• outputBuffer → display

8.4 Common Mistakes When Using the Template

Even when using a template, the following mistakes can break it.

Mistake 1: property Not Updated

• The number of buffers is too small.
• The number of plots does not match.

Mistake 2: Forgetting ArraySetAsSeries

→ The display position shifts.

Mistake 3: OnCalculate Not Implemented

→ Nothing is displayed.

Mistake 4: Handling the price Array Incorrectly

→ Values become incorrect.

8.5 Recommended Practical Workflow (Important)

During development, proceed in this order for a stable result.

Steps

1. Run this template as-is.
2. Confirm that it displays.
3. Replace it with simple logic.
4. Add the real logic.

Reason

• You can eliminate SetIndexBuffer problems first.
• You can separate display issues from calculation issues.

8.6 Mini Debug Code (Very Useful)

Use this to isolate problems.

for(int i = 0; i < rates_total; i++)
{
   buffer[i] = i;
}

Effect

• A straight line is displayed.
• You can confirm whether the array and drawing settings are working.

8.7 Practical Advice for Better Results

• Do not optimize from the beginning.
• Leave prev_calculated for later.
• First create a state where the indicator definitely displays.

8.8 Conclusion (Important)

SetIndexBuffer is not enough by itself:

SetIndexBuffer
+
ArraySetAsSeries
+
PlotIndexSet

Stable behavior starts when all three are configured correctly.

9. FAQ (Frequently Asked Questions and Answer Guidelines)

9.1 I wrote SetIndexBuffer, but nothing is displayed.

Answer guideline: Separate the problem into settings, assignment, and drawing.

• Is it set to INDICATOR_DATA?
• Are values assigned in OnCalculate()?
• Is the drawing type in PlotIndexSet correct? → In most cases, one of these three is missing.

9.2 What is the difference between INDICATOR_DATA and INDICATOR_CALCULATIONS?

Answer guideline: Separate them clearly by whether they are displayed.

• INDICATOR_DATA → displayed
• INDICATOR_CALCULATIONS → not displayed, used internally → If you want to display it, always use DATA.

9.3 Where should SetIndexBuffer be called?

Answer guideline: Clearly state that OnInit is the standard choice.

• Normally, call it once in OnInit().
• You do not need to call it every time in OnCalculate(). → Treat it as initialization.

9.4 I put values into the array, but no line appears.

Answer guideline: Check EMPTY_VALUE and missing assignments.

• Are all elements set to EMPTY_VALUE?
• Are there bars skipped by conditional branches?
• Are you looping through rates_total?

9.5 What is the difference between indicator_buffers and indicator_plots?

Answer guideline: Explain the role separation.

• indicator_buffers → total number of buffers, including calculation buffers
• indicator_plots → number of displayed lines → buffers ≥ plots is required.

9.6 Is ArraySetAsSeries always required?

Answer guideline: It is not required, but consistency is important.

• It is not mandatory, but mismatched directions can cause display shifts.
• For beginners, using true consistently is safer. → In practice, it is close to required for preventing display shifts.

9.7 The display becomes strange when I use multiple buffers.

Answer guideline: Check the consistency of index, properties, and links.

• Does index start from 0 and continue in order?
• Does it match indicator_buffers?
• Does each buffer have a corresponding drawing setting?

9.8 It stops working when I use prev_calculated.

Answer guideline: Leave optimization for later.

• In the initial stage, a full loop is fine.
• prev_calculated is for optimization. → Confirm display first, then optimize later.

9.9 Which is more important, SetIndexBuffer or PlotIndexSet?

Answer guideline: Clarify the difference in roles.

• SetIndexBuffer → data registration, required
• PlotIndexSet → appearance settings, supportive → If SetIndexBuffer is not correct first, nothing else can work.

9.10 Is there a difference from MQL4?

Answer guideline: Briefly explain the design difference.

• MQL5 separates drawing and calculation.
• It has the concept of type, such as DATA and CALCULATIONS. → It is stricter and more flexible than MQL4.
